USER MANUAL


THANK YOU FOR YOUR PURCHASE!



Download our latest written assembly guide here.

​

Yaw2 is a 3DoF Motion Simulator for home and professional use. The second generation of the world's most compact and affordable virtual reality motion simulator.

​

TECHNICAL DATA

CONNECTION SETUP

Download Yaw VR app from Apple Store or Google Play.
Install "YawVR" app and start.

Screenshot_20220121-151802_One UI Home.jpg

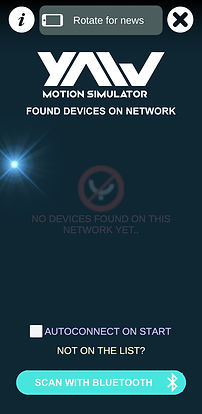

If you start the simulator for the first time, the app will not find the device on the network.

In that case press the “SCAN WITH BLUETOOTH” button!

Screenshot_20220121-151837_Yaw VR.jpg

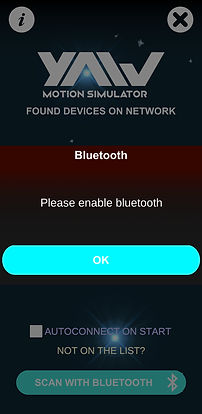

Make sure your bluetooth is turned on.

Screenshot_20220121-152052_Yaw VR.jpg

The app will scan for available Yaw VR devices. When a device appears on the screen you can tap on it to connect. Even if the app is still scanning.


The app will connect to the simulator via bluetooth.


After the connection is established, you can set the local wifi network name and password.

Make sure the simulator is connected to the same wifi network as your mobile phone.


If you see this screen your app is connected to your simulator.

​

CONGRATULATIONS!


Before you start playing, please calibrate the position of the simulator. Move the simulator into the starting position (the chair should be horizontal and the footholder should be directed along the Yaw logo like on the photo on the right. It is recommended to do the calibration before every gameplay.


Now hold the “C” (calibrate)  button for 0.5 second next to “START”

Holding "C" will calibrate ALL axes, Tapping "C" will only calibrate YAW axis.

AFTER YOU OR SOMEONE ELSE SIT IN THE SIMULATOR

Tap the "START” button and your simulator is ready to play.


WARNINGS


TO AVOID ANY DAMAGES TO THE SIMULATOR PLEASE START TO PLAY WITH LOWER DEGREE LIMITATIONS AND INCREASE THE DEGREE STEP BY STEP CAREFULLY!

We suggest to start at 12° limitation on each axes and 50% of power.


BEFORE YOU GET OUT OF THE SIMULATOR

Push “STOP” button or turn off the power button.



HOW TO USE?

You have three options to use Yaw VR simulator

​

Using games with native Yaw VR support:

Unfortunately, there are no games yet with native Yaw VR support. We are working on some own game development which will be released soon.

​

Using your own games:

You can download our SDK from the Downloads menu and include our communication plugin into your own game.

​

Using our easy-to-use GameEngine for third-party games like Nolimits2,Assetto Corsa,Dirt Rally 2, DCS, etc.

​

Use Sim Racing Studio software: Connect to the most popular games and sim accessories via SRS software on PC and even PSVR or XBox. Check out the compatiblity list here

​

Using SimTools:

Download SimTools, check out the compatible games and complete the setup.



Example setup for No Limits 2 - roller coaster simulator.

​

​
